Product name：(VA) thread screw type
Taxonomy：Electromagnetic flowmeters
Product overview

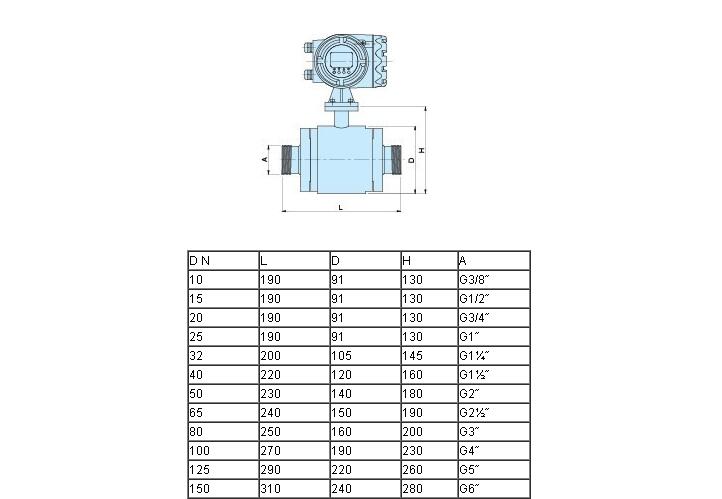

Diameter: DN10mm-DN150
Electrode: 316L,Hb,Hc,Ti,Ta,Pt
Liner: PTFE,PFA,F46
Medium:conductivity liquids
Medium conductivity :≥5μ s/cm
Accuracy: ±0.5%RS- ±1.0%RS
Velocity of flow：0.1m/s- 10m/s
Working temperature:-25°C~150°C (base on material)
Working pressure:0.6MPa-1.6MPa(base on diameter)
Output signal:4-20mA/pulse/frequency
Power supply:220VAC/24VDC,battery
Installation type: Compact, remote
Communication:RS485 or Hart protocol is optional
| DN mm | min flow m3/h | Flow Range Selection（m3/h） | ||||||||
| 10 | 0.08 | 0.16, 0.2, 0.25, 0.3, 0.4,0.5,0.6,0.8,1.0,1.2,1.6,2.0,2.5 | ||||||||
| 15 | 0.2 | 0.4,0.5,0.6,0.8,1.0,1.2,1.6,2.0,2.5,3.0,4.0,5.0,6.0 | ||||||||
| 20 | 0.3 | 0.6,0.8,1.0,1.2,1.6,2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0 | ||||||||
| 25 | 0.5 | 1.0,1.2,1.6,2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0,12.0,14.0,16.0 | ||||||||
| 32 | 0.8 | 1.6,2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0,12.16,20,25 | ||||||||
| 40 | 1.2 | 2.5, 3.0, 4.0, 5.0, 6.0, 8.0,10.0,12,16,20,25,30,40 | ||||||||
| 50 | 2 | 4.0, 5.0, 6.0, 8.0, 10, 12,16,20,25,30,40,50,60,70 | ||||||||
| 65 | 3.5 | 6.0,8.0,10,12,16,20,25,30,40,50,60,80,100,120 | ||||||||
| 80 | 5 | 10,12,16,20,25,30,40,50,60,80,100,120,160 | ||||||||
| 100 | 8 | 16,20,25,30,40,50,60,80,100,120,160,200,250 | ||||||||
| 125 | 12 | 25,30,40,50,60,80,100,120,160,200,250,300,400 | ||||||||
| 150 | 18 | 40,50,60,80,100,120,160,200,250,300,400,500,600 | ||||||||
| 200 | 30 | 60,80,100,120,160,200,250,300,400,500,600,800,1000 | ||||||||
| 250 | 50 | 100, 120, 160, 200, 250, 300, 400, 500, 600, 800, 1000, 1200, 1600 | ||||||||
| 300 | 70 | 160, 200, 250, 300, 400, 500, 600, 800, 1000, 1200, 1600, 2000, 2500 | ||||||||
| 350 | 100 | 200, 250, 300, 400, 500, 600, 800, 1000, 1200, 1600, 2000, 2500, 3000 | ||||||||
| 400 | 120 | 250, 300, 400, 500, 600, 800, 1000, 1200, 1600, 2000, 2500, 3000, 4000 | ||||||||
| 450 | 160 | 300, 400, 500, 600, 800, 1000, 1200, 1600, 2000, 2500, 3000, 4000, 5000 | ||||||||
| 500 | 200 | 400, 500, 600, 800, 1000, 1200, 1600, 2000, 2500, 3000, 4000, 5000, 6000 | ||||||||
| 600 | 300 | 600, 800, 1000, 1200, 1600, 2000, 2500, 3000, 4000, 5000, 6000, 10000 | ||||||||
| 700 | 400 | 800, 1000, 1200, 1600, 2000, 2500, 3000, 4000, 5000, 6000, 10000, 12000 | ||||||||
| 800 | 500 | 1000, 1200, 1600, 2000, 2500, 3000, 4000, 5000, 6000, 10000, 12000, 16000 | ||||||||
| 900 | 650 | 1200, 1600, 2000, 2500, 3000, 4000, 5000, 6000, 8000, 10000, 12000, 16000, 18000 | ||||||||
| 1000 | 800 | 1600, 2000, 2500, 3000, 4000, 5000, 6000, 10000, 12000, 16000, 20000 | ||||||||
| 1200 | 1200 | 2500, 3000, 4000, 5000, 6000, 8000, 10000, 12000, 16000, 20000, 25000, 30000 | ||||||||
| 1400 | 1500 | 3000, 4000, 5000, 6000, 8000, 10000, 12000, 16000, 20000, 25000, 30000, 40000 | ||||||||
| 1600 | 2000 | 4000, 5000, 6000, 8000, 10000,1 2000, 16000, 20000,2 5000, 30000, 40000,50000, 60000 | ||||||||
| 1800 | 2500 | 5000, 6000, 8000, 10000, 12000, 16000, 20000, 25000, 30000, 40000, 50000, 60000 | ||||||||
| 2000 | 3000 | 6000, 8000, 10000, 12000, 16000, 20000, 25000, 30000, 40000, 50000, 60000, 80000, 100000 | ||||||||
